Floor Stand Touch Display Totem.
1. CPU 64-bit 4 cores, main frequency 1.5GHZ, 1GB DDR and 8 GB eMMC RJ45.
2. Internet: 1*10/100M Ethernet ; RJ45.
3. WIFI: Wi-Fi with antenna, 802.11 1×1 BGN+BT.
4. Board Interfaces: USBX2,TF Reader X1,RJ45 X1,HDMI-INX1 (option, if needs).
5. PC Built-in Option: Usually Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi (Options: Chipset Intel HM76/ H81/H110 ).
6. Infrared technology Infrared mutlit touch, finger and gloved hand, or any opaque objects.
Description
Arotouch Floor Standing Digital Signage provides a practical way to display advertising, menus, promotions and business information. The floor-standing design makes the screen easy to place in busy indoor areas.
This digital display is suitable for airports, hotels, restaurants, cafes, retail stores, shopping malls, hospitals, banks and corporate offices. It can also support wayfinding and public information.
Stable Floor-Standing Design
The display is designed to stand on the floor. It does not require wall mounting.
This makes installation simple. You can place the screen near entrances, reception areas, corridors or waiting areas.
The vertical screen also helps digital content remain visible in busy environments.
Free CMS System for Digital Signage
Arotouch offers a Free CMS System for digital signage projects. The system helps businesses manage their digital content.
Use the CMS to organize advertising, videos, images, promotions and announcements. WiFi and RJ45 are available for connected applications.
This setup works well for businesses with regular content updates.
Full HD and 4K Resolution Options
The standard resolution is 1920×1080 Full HD. A 3840×2160 4K option is available.
The 4K option is useful for detailed product images and high-resolution videos. Brightness options range from 200 to 500 cd/m².
The screen uses 4mm tempered anti-glare glass. It has Level 7 hardness on the Mohs scale.
Optional Touchscreen
The standard model is non-touch. It is a good choice for advertising and information display.
Infrared touch and capacitive touch are available as options. Touch models can support interactive directories, digital wayfinding and product information.

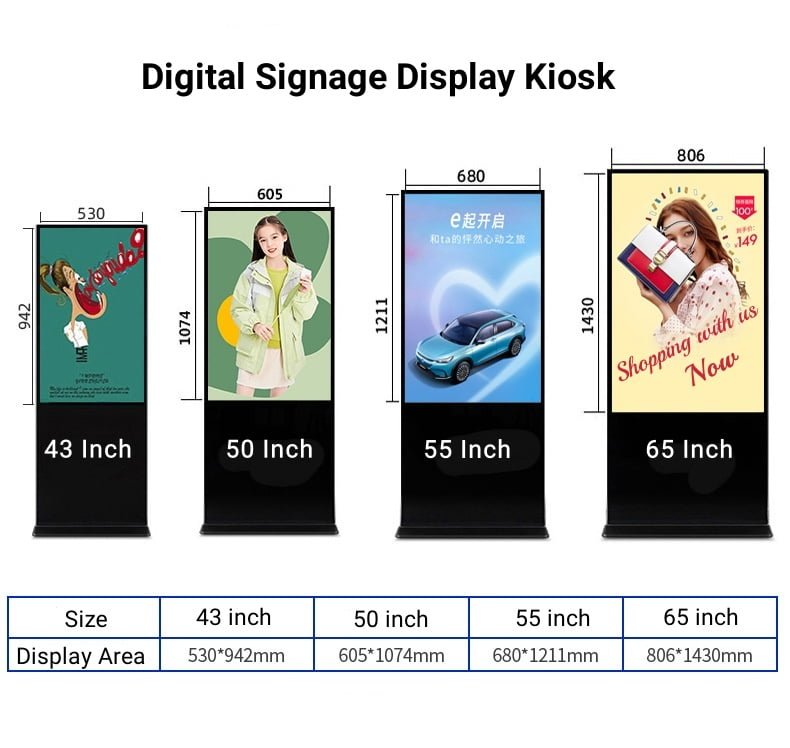

Six Screen Size Options
Arotouch offers six screen sizes for different installation spaces:
- 32 inch
- 43 inch
- 50 inch
- 55 inch
- 65 inch
- 75 inch
Smaller models fit compact spaces. Larger models provide better visibility in halls and other open areas.
Android and Windows Options
The standard configuration comes without an operating system. Android and Windows are available as options.
The Android option uses RK3288 hardware with 2GB RAM and 8GB storage.
Windows models can use Intel Core i3, i5 or i7 processors. Memory options include 4GB and 8GB. Storage options include 128GB, 256GB and 512GB.
Applications for Different Industries
Airports can use the display for advertising, passenger information and wayfinding.
Hotels can show guest services, event information and promotions.
Restaurants and cafes can display menus, special offers and brand content.
Retail stores can promote products and communicate prices or special offers.
Shopping malls and hospitals can use the screen for directories, announcements and public information.
Key Features
- Floor-standing digital signage design
- 32″, 43″, 50″, 55″, 65″ and 75″ sizes
- 1920×1080 Full HD standard resolution
- 3840×2160 4K option
- 200-500 cd/m² brightness
- 1200:1 / 4000:1 / 5000:1 contrast ratio options
- Free CMS System
- Non-touch standard configuration
- Infrared touch option
- Capacitive touch option
- Android and Windows options
- BOE, AUO, Innolux and CSOT panel options
- 4mm tempered anti-glare glass
- Coated aluminium frame
- WiFi and RJ45 connectivity
- 2×5W speakers
- USB 2.0×2
Technical Specifications
| Panel | TFT LCD |
| Panel Size | 32″ / 43″ / 50″ / 55″ / 65″ / 75″ |
| Resolution | 1920×1080 Full HD Standard / 3840×2160 4K Optional |
| Brightness | 200-500 cd/m² |
| Contrast Ratio | 1200:1 / 4000:1 / 5000:1 |
| Display Color | 16.7M |
| Response Time | 8ms |
| Panel Brand | BOE, AUO, Innolux, CSOT, etc. |
| Viewing Angle | 89°/89° |
| Internal Storage | 2GB + 16GB |
| Touch | Non-Touch Standard / Infrared Touch Optional / Capacitive Touch Optional |
| Glass | 4mm Tempered Glass, Level 7 on Mohs Hardness Scale, Anti-Glare |
| Frame Material | Coated Aluminium |
| Operating System | Without OS Standard / Android Optional / Windows Optional |
| Android Option | RK3288 / 2GB RAM / 8GB Storage |
| Windows Option | Intel Core i3/i5/i7 / 4GB or 8GB Memory / 128GB, 256GB or 512GB Storage |
| Speaker | 2×5W |
| Internet | WiFi / RJ45 |
| Interface | USB 2.0×2 |

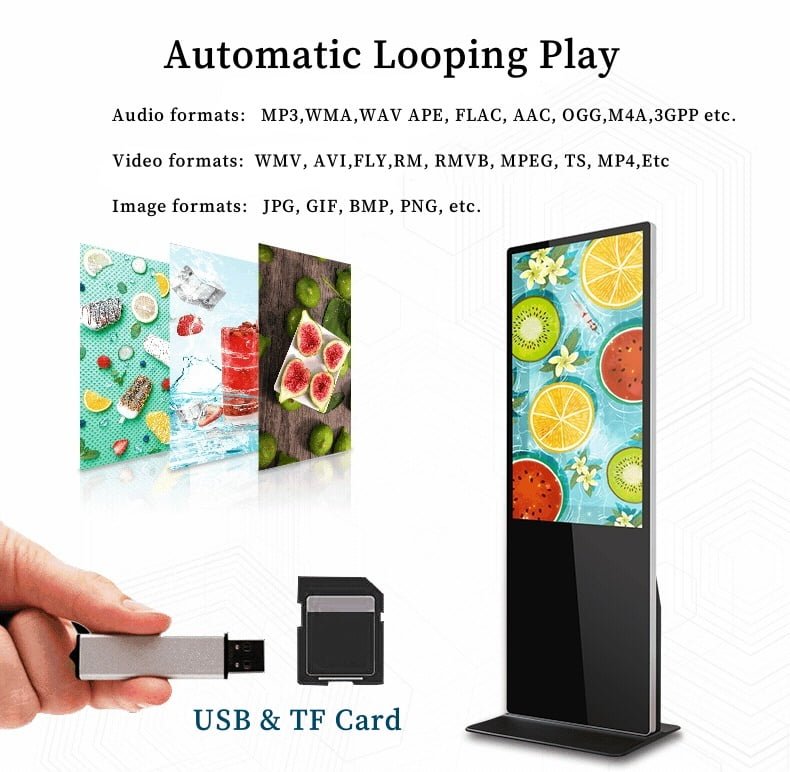

| Video Format | MPEG1 / MPEG2 / MPEG4 / ASP / WMV / AVI |
| Image Format | JPEG / BMP / TIFF / PNG / GIF |
| Audio Format | Wave / MP3 / WMA / AAC |
| Image Resolution | Supports 1080p, 720p, 480p and Multiple Resolutions |
| Power Supply | AC 100-240V, 50/60Hz |
| Overall Power Consumption | ≤220W |
| Standby Power Consumption | <1W |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ |
| Operating Humidity | 0.85 |
| Storage Humidity | 0%-95% Non-Condensing |
| Accessories Included | 1×Power Cord, 1×User Manual, Remote Controller |
Customized Floor Standing Digital Signage
Arotouch supplies Floor Standing Digital Signage for distributors, system integrators and commercial projects. You can select the screen size, resolution, touch technology and operating system according to your project.
Choose Full HD for standard advertising. Select 4K for sharper visual content. Add touch functionality when users need to interact with the display.
With a floor-standing design and Free CMS System, Arotouch provides a flexible solution for modern commercial spaces.
