Description

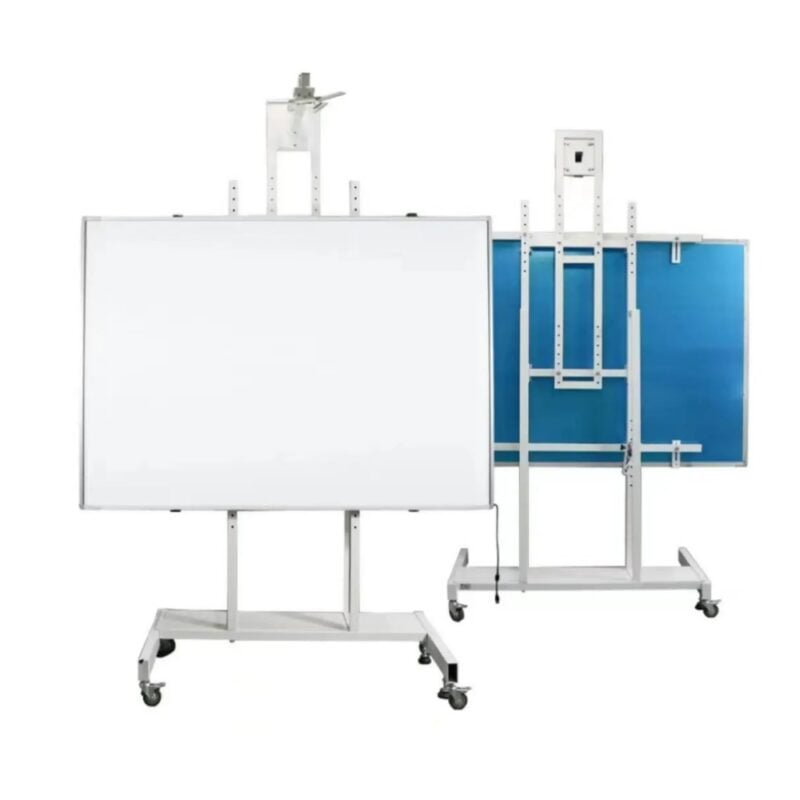

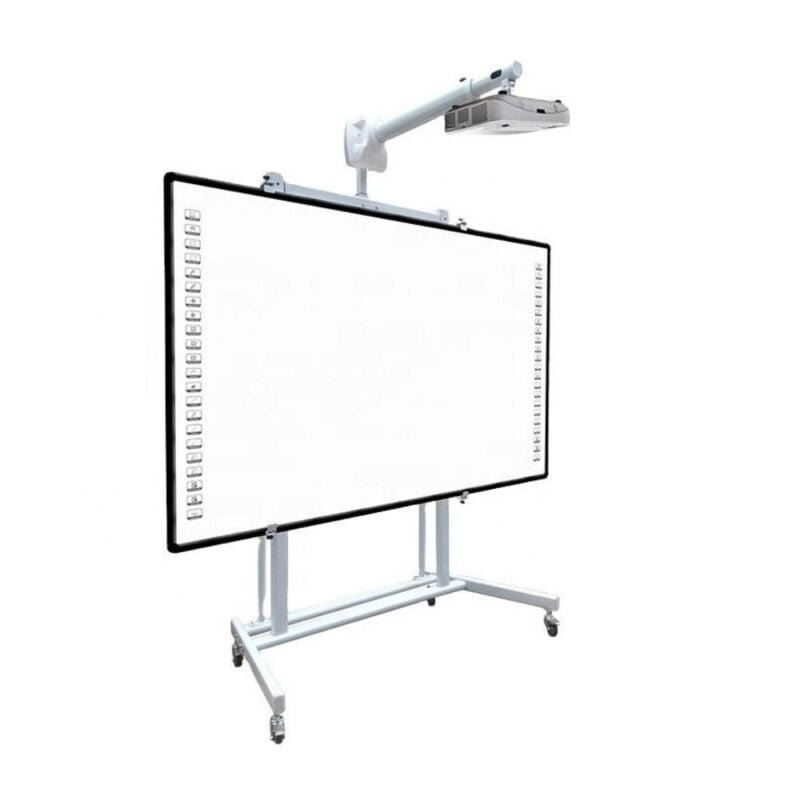

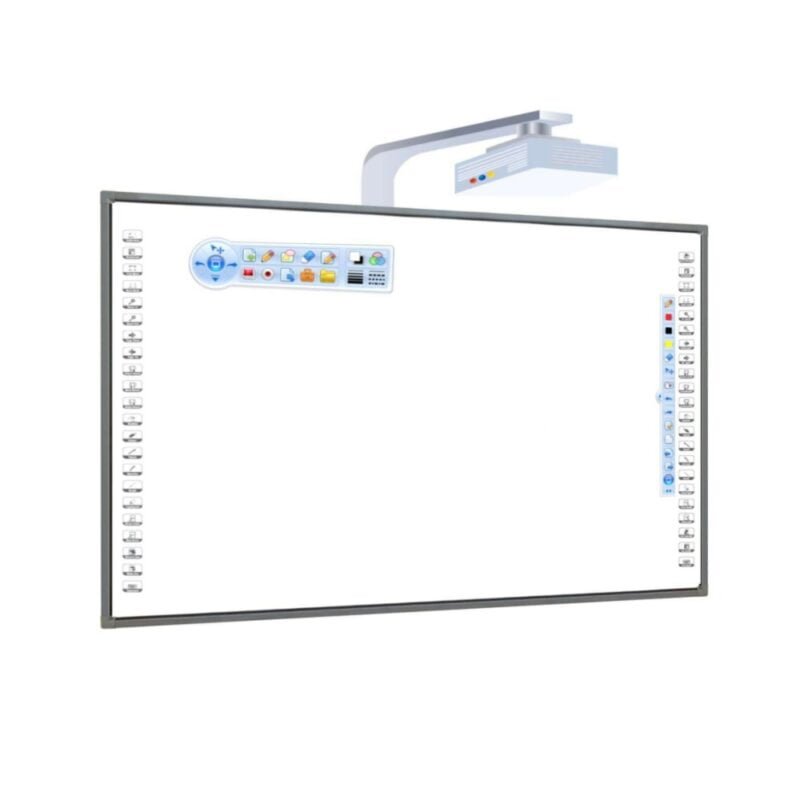

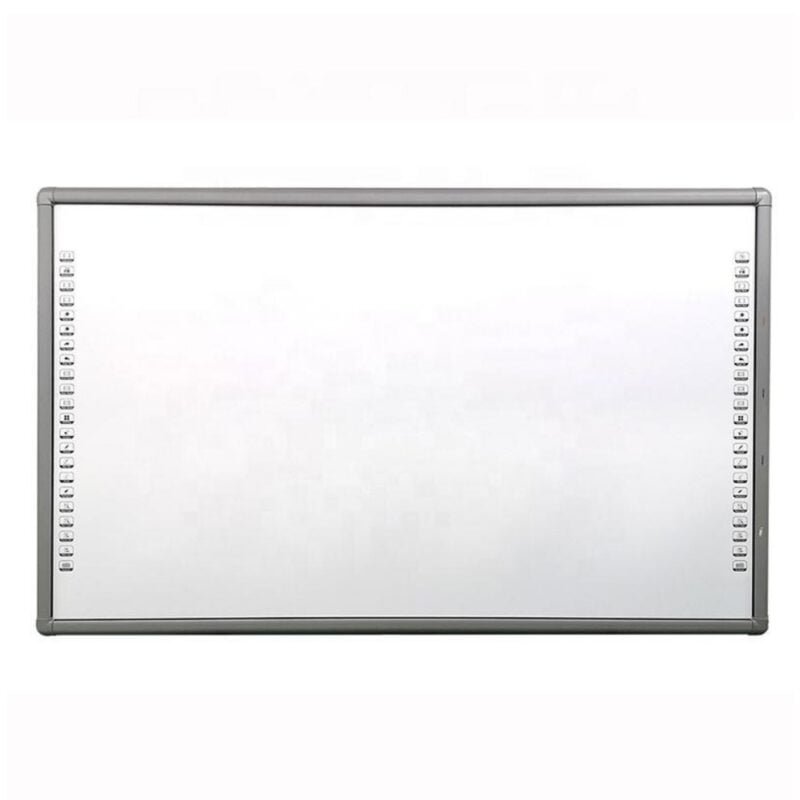

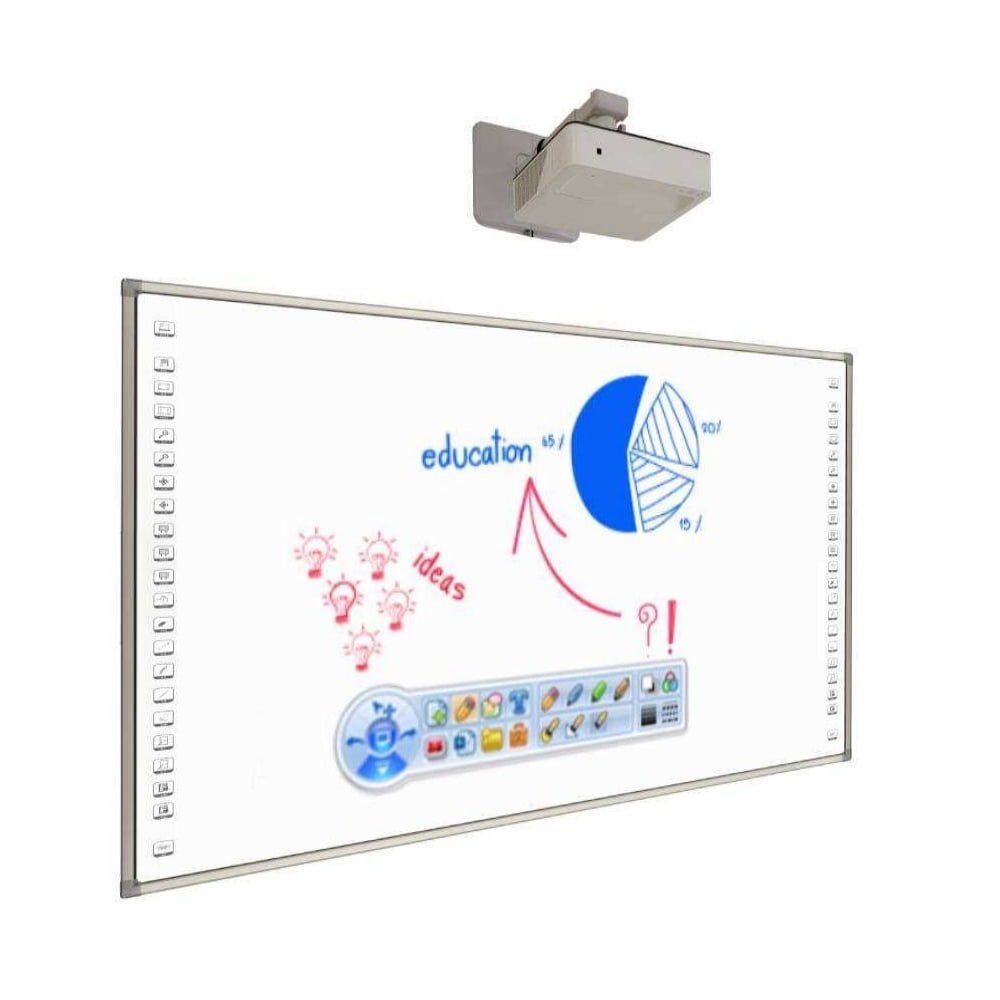

Interactive Multitouch Digital Whiteboard
Arotouch Interactive Multitouch Digital Whiteboard is designed for interactive teaching, business presentations, and collaborative environments.
Supporting sizes from 82 to 150 inches, this digital whiteboard provides accurate multi-touch interaction with infrared and optical touch technology.
It supports up to 64 touch points, allowing multiple users to write, draw, annotate, and interact with digital content simultaneously.
With fast touch response, high light transmission, and wide operating system compatibility, the interactive whiteboard is ideal for classrooms, training rooms, conference rooms, and professional presentation applications.
Product Features
- Large size options from 82 inch to 150 inch
- Supports 1-64 touch points for multi-user interaction
- Infrared and optical touch technology
- Fast touch response time of 10-15ms
- No pressure required for touch activation
- High light transmission for clear projection display
- USB plug-and-play connection
- Compatible with Windows, Android, macOS, and Linux systems
- Suitable for education, training, meeting rooms, and interactive presentations
Product Specifications
| Product Name | Interactive Multitouch Digital Whiteboard |
| Technology | Infrared / Optical Touch |
| Available Size | 82 / 84 / 90 / 96 / 102 / 105 / 150 inch |
| Material | Aluminum Alloy + PCBA |
| Touch Points | 1-64 Points |
| Touch Activation Force | No Pressure Required |
| Luminous Transmission | >92% (100% without glass) |
| Touch Response Time | 10-15ms |
| Minimum Recognition Point Size | 4mm × 4mm |
Electrical Specifications
| Touch Refresh Rate | ≥110Hz |
| Communication | USB 2.0 Full Speed |
| Power Supply Mode | USB ×1 |
| Working Voltage | DC 5.0V ±5% |
| Average Current | ≤200mA |
| Power Consumption | ≤1.0W |
| LED Lifetime | 60,000 Hours |
| Fault Tolerance | Able to work if less than 10% non-consecutive sensors are damaged |
Environmental Specifications
| Humidity | Up to 90% RH from 0℃ to +40℃ (non-condensing) |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| ESD | EN 61000-4-2 Level 4, 4KV contact discharge and 8KV air discharge |
| Anti-Light Interference | Excellent |
Software Compatibility
| Multi Touch Support | Windows 10 / Windows 8 / Windows 7 / Android |
| One Touch Support | Windows XP / macOS / Linux |
| Firmware Upgrade | USB Upgrade |
Applications
- Interactive classroom teaching
- Digital education solutions
- Corporate training rooms
- Conference room presentations
- Interactive projection systems
- Professional collaboration environments
