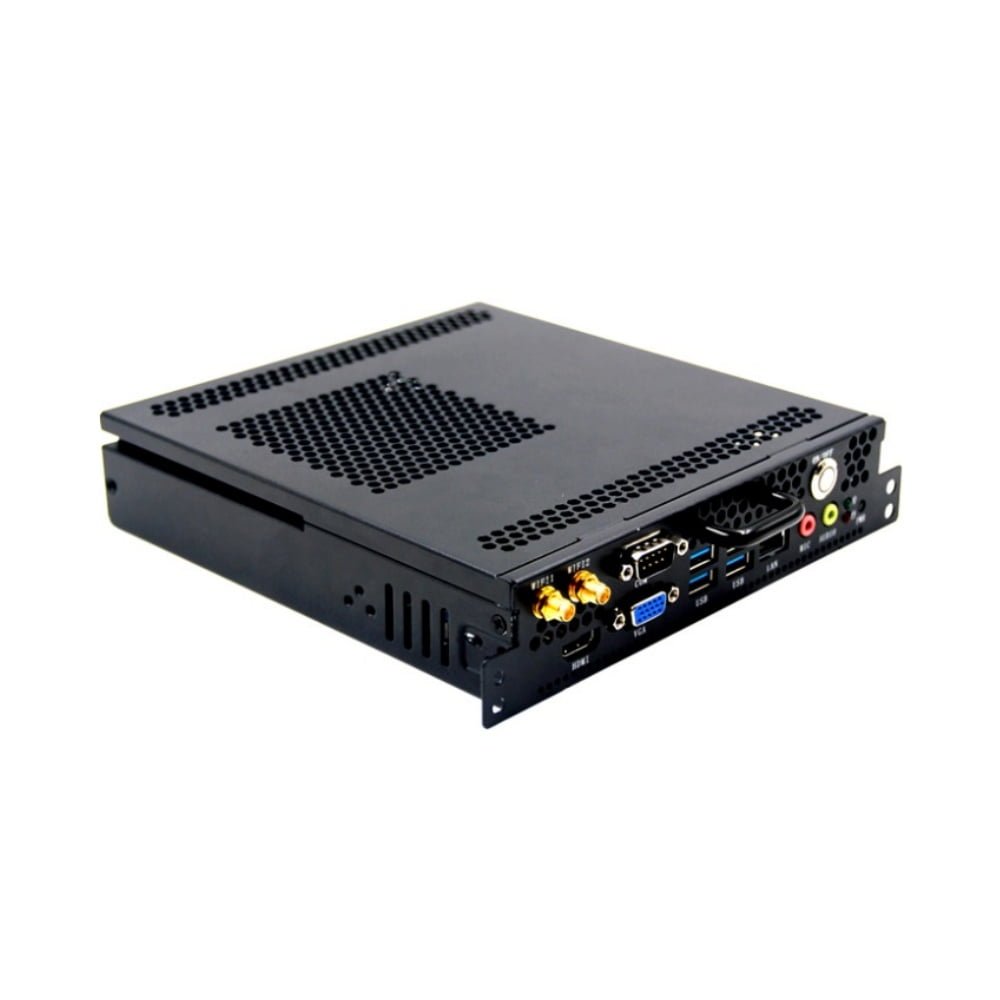

OPS Smartboard Windows PC.
• 4K Output resolution
• LAN Port for Internet Connectivity
• Inbuilt Wi-Fi for wireless internet connectivity
• USB 3.0, HDMI, DP, Speaker, Mic, etc
• Supports Windows 10 64bit, Linux Etc.
• Works with both SSD & HDD storage Types.
• Expandable for major displays sizes.
Description
Product Description
The OPS Smartboard Windows PC is a powerful plug-in computer module designed for interactive smart boards, interactive displays, and digital classroom solutions.
Based on the Open Pluggable Specification (OPS) standard, it provides a seamless Windows computing experience for smart boards and interactive display systems.
Equipped with Intel Core i3/i5/i7 processors, the OPS Smartboard Windows PC delivers reliable performance for teaching software, multimedia presentations, video conferencing, and interactive applications.
Designed for education, business, and commercial display environments, this OPS PC module allows users to easily upgrade smart boards with Windows operating systems without requiring external computers or complicated installation.
Key Features
OPS Plug-in Computer Design
The OPS Smartboard Windows PC adopts a standardized plug-in design, allowing quick installation into compatible interactive displays and smart boards.
- OPS standard compatible design
- Easy installation and maintenance
- Clean and integrated display solution
- Suitable for interactive whiteboards and smart displays
Intel Core Processor Performance
Powered by Intel Core processors, the OPS PC provides stable computing performance for education, meetings, and professional applications.
- Intel Core i3 / i5 / i7 processor options
- Support Windows operating systems
- Smooth multimedia playback
- Reliable performance for interactive applications
Designed for Smart Board Applications
The OPS Smartboard Windows PC is specially designed for interactive displays, smart classrooms, and digital collaboration environments.
- Interactive teaching software support
- Office presentation applications
- Video conference applications
- Digital content management
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | OPS Smartboard Windows PC |
| Product Type | OPS Computer Module |
| Processor | Intel Core i3 / i5 / i7 |
| CPU Interface | Intel LGA 1150 |
| Chipset | Intel H81 |
| Memory | 4GB+32GB / 8GB+32GB Optional |
| Memory Type | DDR3 1333/1600MHz SO-DIMM |
| Maximum Memory | 16GB |
| Storage | 2.5 inch SATA HDD/SSD Support |
| Graphics | Intel HD Graphics |
| Display Output | HDMI + VGA |
| Network | 1×1000M LAN Intel i218LM |
| I/O Interface | 1×USB3.0, 2×USB2.0, JAE TX25 80 Pin |
| Audio | Realtek ALC662, Audio Out, Mic Input |
| Expansion Slot | Mini PCI-E / mSATA |
| Operating System | Windows 7 / Windows 8.1 / Windows 10 / Linux |
| Power Supply | DC12V / DC19V |
| Case Material | Iron |
| Color | Black |
| Dimension | 181 × 196 × 43mm |
| Working Temperature | 0℃ ~ 40℃ |
| Humidity | 95% at 40℃ (Non-condensing) |
Applications
Smart Classroom
The OPS Smartboard Windows PC provides powerful computing capability for interactive teaching software, multimedia lessons, and digital education platforms.
Conference Room
Support business presentations, video conferencing, and collaborative meeting applications with Windows-based computing.
Interactive Display Systems
Perfectly integrates with smart boards, interactive displays, and commercial touchscreen systems.
Why Choose Arotouch OPS Smartboard Windows PC?
- Designed for smart board and interactive display applications
- Intel Core processor options
- Easy OPS installation design
- Supports Windows operating systems
- OEM and ODM customization available
- Reliable solution for education and commercial projects
Arotouch OPS Smartboard Windows PC provides a powerful and flexible computing solution for interactive whiteboards, smart classrooms, meeting rooms, and digital display applications.
