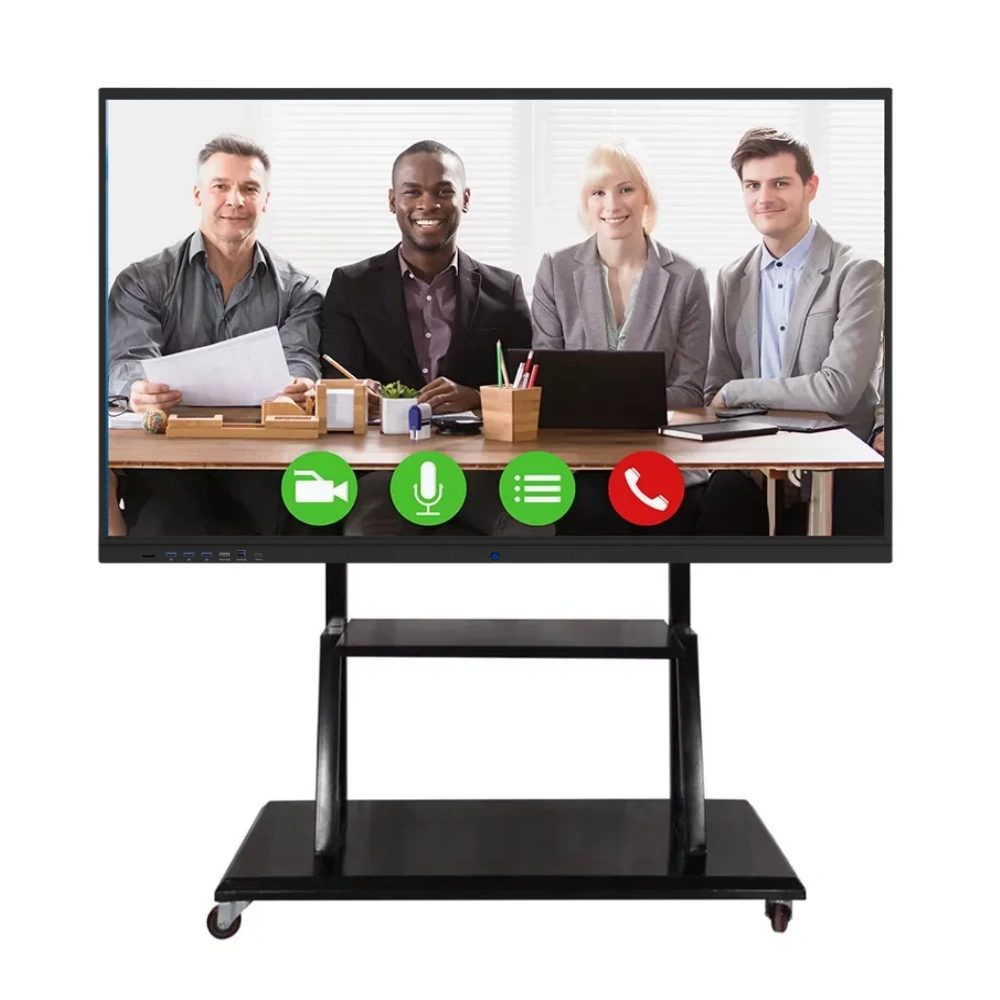

Smart Board Interactive Displays.
● 4K UHD anti-glare display delivers images with extreme detail.
● Zero bonding technology between lcd panel and cover glass brings brighter viewing and smoother touching experience.
● Ultra-narrow and equal-width bezel design for perfect aesthetics.
● Dual-channel, 8-Array Speaker Brings High-Quality Surround Sound.
● High-Precision infrared Touch Technology Allows up to 20-Point Touch, Realizing Smooth Co-authoring.
● Bluetooth 5.2 offers higher data transmission rate, and lower power consumption.
● 4K UI, mobile-level operation, just like use a mobile phone.
Description
The Smart Board Interactive Displays is an advanced interactive flat panel solution designed for smart classrooms, conference rooms, training centers, and modern collaboration environments.
Combining a 4K UHD display, infrared multi-touch technology, Android operating system, built-in camera, microphone array, and wireless connectivity, this interactive display provides an all-in-one solution for teaching, meetings, presentations, and digital collaboration.
Available in 65 inch, 75 inch, 86 inch, and 98 inch sizes, the Smart Board Interactive Display delivers smooth touch interaction, clear visual performance, and powerful collaboration features for education and business applications.
Key Features
4K Ultra HD Interactive Display
The Smart Board Interactive Display features a high-resolution 3840×2160 UHD screen, providing clear images and detailed content presentation for classrooms and meeting environments.
- 4K UHD resolution
- 178° wide viewing angle
- 1.07 billion color support
- High-quality visual experience
20-Point Infrared Multi-Touch
Equipped with advanced infrared touch technology, the interactive flat panel supports smooth multi-user writing and interaction.
- 20-point infrared touch
- ±1mm touch accuracy
- Fast response time ≤10ms
- Finger and touch pen operation
- Anti-glare tempered glass surface
Smart Classroom & Meeting Solution
The Smart Board Interactive Displays provide powerful tools for interactive teaching, video conferencing, business presentations, and collaborative work.
- Digital classroom teaching
- Online meetings
- Video conferencing
- Interactive presentations
- Team collaboration
Built-in Camera and Microphone System
The integrated camera and microphone system enables efficient remote communication and online collaboration.
- 13MP / 48MP camera optional
- 8-array microphone system
- 0-8 meter pickup distance
- 1080P video support
Android Smart System
Powered by the Amlogic 311D2 chipset and Android 13 operating system, the interactive display provides smooth operation and flexible application support.
- Android 13 system
- A73+A53 octa-core CPU
- 4GB+32GB / 8GB+128GB optional
- WiFi 6 and WiFi 5 support
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Smart Board Interactive Displays |
| Product Type | Interactive Flat Panel Display |
| Screen Size | 65 / 75 / 86 / 98 Inch |
| Resolution | 3840 × 2160 4K UHD |
| Panel Brand | BOE / CSOT / LG Optional |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 / 4000:1 Optional |
| Touch Technology | Infrared 20-Point Multi-Touch |
| Touch Accuracy | ±1mm |
| Glass | 4mm Tempered Anti-glare Glass |
| Operating System | Android 13 |
| CPU | A73×4 2.28G + A53×4 2.0G |
| RAM / ROM | 4GB+32GB / 8GB+128GB Optional |
| Touch Interface | USB Touch / HDMI / Type-C |
| Camera | 13MP / 48MP Optional |
| Microphone | 8-Array Built-in Microphone |
| Speaker | 2 × 15W |
| Wireless | WiFi 6 + WiFi 5 Dual Module |
| Bluetooth | Bluetooth 5.2 |
| Wall Mount | 500×400 VESA |
| Warranty | 365 Days |
Applications
Smart Classroom
The Smart Board Interactive Display helps teachers create engaging digital lessons with touchscreen interaction, multimedia content, and online teaching tools.
Conference Room
Ideal for business meetings, video conferences, presentations, and collaborative discussions.
Training Centers
Provides an interactive learning platform for professional training and educational institutions.
Why Choose Arotouch Smart Board Interactive Displays?
- Professional interactive flat panel manufacturer
- 65-98 inch display options
- 4K UHD high-resolution screen
- 20-point infrared touch technology
- Built-in camera and microphone
- OEM and ODM customization support
- Complete smart classroom and meeting solutions
Arotouch Smart Board Interactive Displays provide an integrated solution for education, business collaboration, and smart digital environments.
